40ft Shipping Container Conversions UK

Converted 40ft units for UK business

Container Projects supplies high-quality modified 40ft units to the industrial, commercial, and utility sectors nationwide. If you require a permanent asset for your site, we offer bespoke container sales from our conversion facilities. For temporary project requirements, our container hire service provides a range of standard modified units with flexible terms. To receive specific technical drawings and pricing for your project, request a container quote today. We manage the entire logistics process to ensure your 40ft conversions are delivered and positioned safely on site.

Technical dimensions and specifications

A converted 40ft unit is typically based on a 40ft general-purpose or 40ft high-cube shell. Internal dimensions are reduced from standard ISO measurements once insulation, lining, and internal partitions are installed. Use the table below to check the external footprint and typical internal clearances.

Tare is the weight of the empty container, including the conversion fit-out. Payload is the maximum weight of equipment or furniture the unit can support. For a 40ft high cube conversion, the tare weight is typically between 4,500kg and 5,500kg, depending on the chosen lining and partition walls. If you require a smaller split-purpose unit, consider the 24ft office and store variant.

Custom modification and features

Container Projects offers a wide array of container conversions for 40ft units. These can be configured as a single open space or partitioned into multiple functional areas, such as a 50/50 office-workshop split.

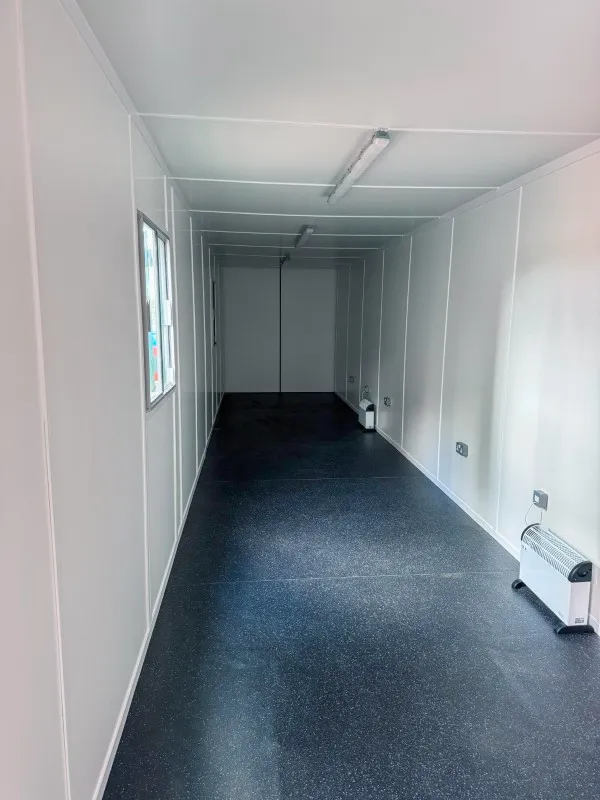

• Lining and Insulation: Walls and ceilings are lined with 10mm ply or MFC over 50mm Rockwool or spray foam insulation to maintain a comfortable environment year-round.
• Doors and Windows: Steel personnel doors with 10-point locking, sliding glass windows with anti-vandal shutters, and optional roller shutter or additional side-access doors.
• Electrical Fit-out: Consumer units, LED lighting (with optional PIR sensors), heating, and multiple power socket points.
• Specialised Fit-outs: Switch-room conversions for utility companies, including floor apertures for cable entry and specialised internal racking.
• Retail and Hospitality: Conversions into pop-up retail containers, cafes, or bars with external canopies and professional paint finishes in any RAL colour.

Hire or buy

Choosing between hire and purchase depends on your project’s duration and technical complexity. Buying is recommended for permanent installations or bespoke plant rooms where the unit is a long-term asset. This allows for total customisation of the 40ft shell. Hiring is often the preferred route for construction site offices and canteens where the unit is needed for a fixed project lifespan. Container Projects provides high-quality units for both, including a container buy back service for owned units that are no longer required.

Condition grades and definitions

The grade of the base container influences the final aesthetic and functional quality of the conversion.

• One-trip: A one-trip unit is a container manufactured in Asia and used once for cargo transport to the UK. These are ideal for high-visibility site offices or retail units due to their near-new condition.
• Used (Wind and Watertight): These are retired marine units, typically 10+ years old, that remain structurally sound and weather-tight. They offer a cost-effective base for workshops or storage conversions.
• IICL: High-quality used units that meet the rigorous inspection and repair standards of the International Institute of Container Lessors.

Delivery access, siting, and placement

Delivering a converted 40ft unit requires significant planning and space for an articulated container haulage vehicle equipped with a hiab crane.

1. Access: The vehicle requires a minimum width of 10ft and vertical clearance of 16ft. Because of the articulated length, a clear 100ft straight run is often necessary for positioning.
2. Ground Surface: The unit must be placed on firm level ground such as concrete, tarmac, or compacted gravel. Uneven ground will cause the 40ft frame to twist, which prevents personnel doors and windows from operating correctly.
3. Obstructions: Check for overhead power cables; the crane must maintain a safe distance from live wires during the lift.
4. Foundations: For permanent conversions, we recommend concrete pads or railway sleepers to support the corner castings.

Security and aftercare

Security is paramount for converted workspaces containing electronics or tools. Container Projects uses high-security personnel doors and fits factory-fitted lockboxes to any original cargo doors. A lockbox is a steel shroud that protects the padlock from tampering. Aftercare involves annual checks of the window and door seals and lubrication of the multi-point locking mechanisms. For more details on maintaining your unit, visit our faq page.

Export use and compliance

If your converted unit is required for international deployment, it must have a valid CSC plate. A CSC plate is a safety approval for international transport. Note that significant structural modifications, such as large side apertures for windows or doors, can affect the unit's CSC status. Container Projects can provide certified structural frames for export projects. For more info, see our about us page.

How Container Projects handles your conversion

1. Consultation to identify your specific layout, insulation, and electrical requirements.
2. Site assessment via satellite imagery to verify articulated hiab access.
3. Provision of technical drawings and a detailed quote for the fabrication work.
4. In-house modification and fit-out by our specialist fabrication team.
5. Delivery, precision placement, and final handover on your site.
